| Model | Appearance | Layout (Bottom View) |
Dimension(mm) (L x W x H) |
Contact Arrangement |
Contact Ratings | Coil Voltage | Safety Approval | Data Sheet |
|---|---|---|---|---|---|---|---|---|
| TY |  |
 |
12.5 X 7.5 X 10.0 | 1C | 0.5A 125VAC 1A 30VDC |
1.5~24VDC |  |
 PDF Data sheet |
| ETY |  |
 |
12.4 x 7.4 x 10.0 | 1C | 2A 120VAC 2A 24VDC |
3~24VDC |  |
PDF Data sheet |
| CY |  |
 |
20.2 x 10.0 x 11.5 | 2C | 1A 125VAC 2A 30VDC |
3~24VDC |  |
PDF Data sheet |

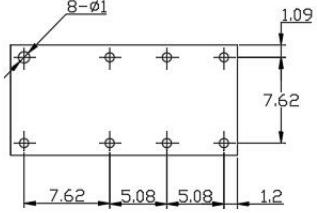

| ECY |  |
 |
20.5 x 10.0 x 11.8 | 2C | 1A 120VAC 2A 24VDC |
3~24VDC |  |
PDF Data sheet |
| TA |  |
 |
15.7 x 10.4 x 11.7 | 1A, 1C | 3A 120VAC 3A 24VDC |
3~48VDC |  |
PDF Data sheet |
| CJ |  |
 |
15.0 x 7.5 x 9.0 | 2C | 0.5A 125VAC 2A 30VDC |
1.5~48VDC |  |
PDF Data sheet |
| CP |  |
 |
14.0 x 9.0 x 5.4 | 2C | 0.5A 125VAC 1A 30VDC |
1.5~24VDC |  |
PDF Data sheet |
| NC |  |
 |
10.0 x 6.5 x 5.4 | 2C | 0.3A 125VAC 1A 30VDC |
1.5~24VDC |  |
PDF Data sheet |
| SA |  |
 |
10.6 x 5.7 x 9.0 | 2C | 1A 125VAC 2A 30VDC |
1.5~24VDC |  |
PDF Data sheet |
| SB |  |
 |
9.0 x 4.8 x 4.9 | 2C | 0.3A 125VAC 1A 30VDC |
1.5~24VDC |  |
PDF Data sheet |
| SE |  |
 |
15.0 x 7.5 x 10.0 | 1A | 30mA 1000VDC | 1.5~24VDC |  |
PDF Data sheet |
| NB |  |
 |
20.2 x 10.2 x 10.6 | 2C | 1A 125VAC 3A 30VDC |
3~48VDC |  |
PDF Data sheet |
