| Model | Appearance | Layout (Bottom View) |
Dimension(mm) (L x W x H) |
Contact Arrangement |
Contact Ratings | Coil Voltage | Safety Approval | Data Sheet |
|---|---|---|---|---|---|---|---|---|

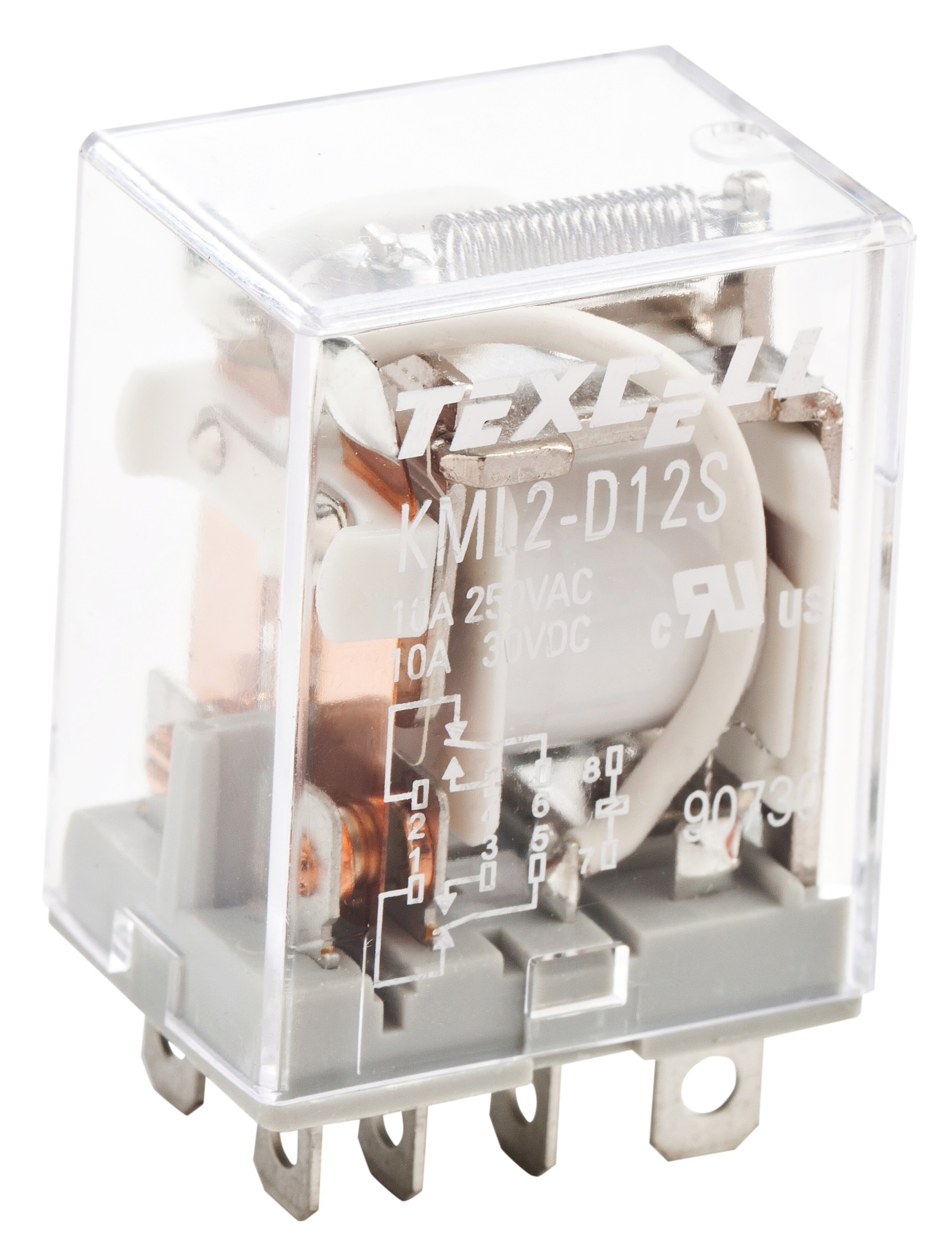

| KML1, 2 |  |
 |
28.0 x 21.5 x 35.0 | 1C 2C |
15A 250VAC / 30VDC 10A 250VAC / 30VDC |
5~220VDC 6~277VAC |
 |
 PDF Data sheet |

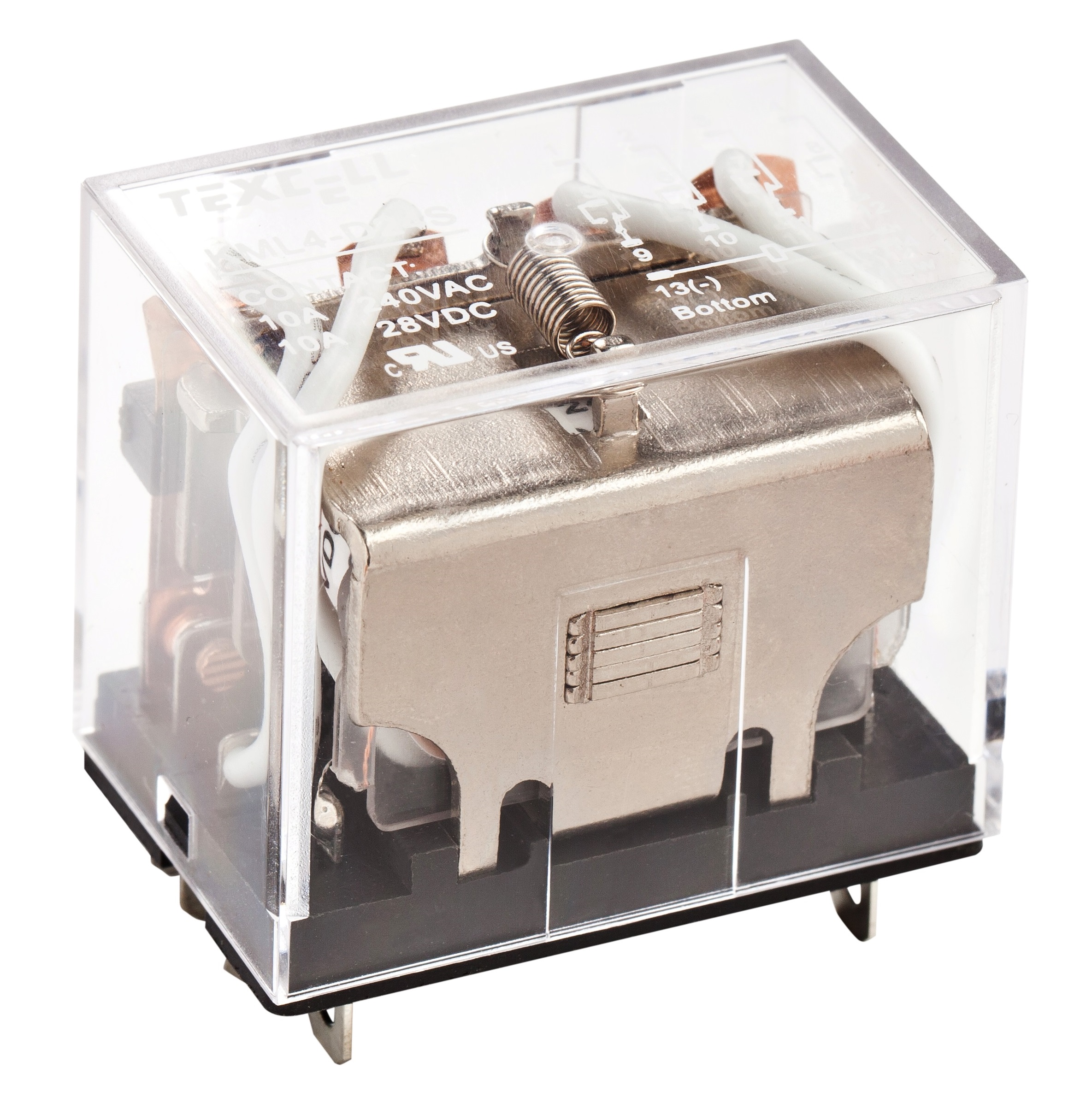

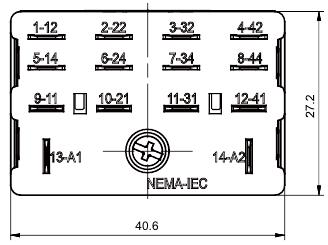

| KML3, 4 |  |
 |
30.6 x 27.2 x 34.8 40.6 x 27.2 x 34.8 |
3C, 4C - NO 3C, 4C - NC |
15A 250VAC / 28VDC 7.5A 250VAC / 28VDC |
12~110VDC 12~240VAC |
 |
PDF Data sheet |

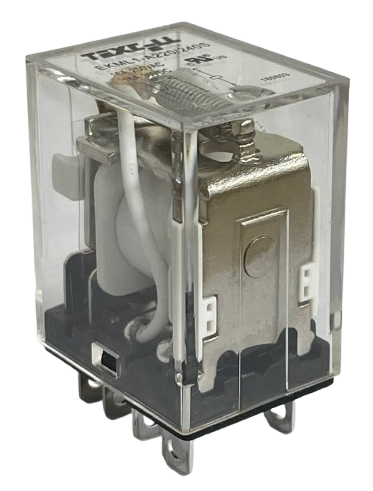

| EKML |  |
 |
28.0 x 21.5 x 35 28.0 x 21.5 x 35 27.2 x 31.0 x 35 27.0 x 40.7 x 35 |
1C 2C 3C 4C |
16A 250VAC / 30VDC 10A 250VAC / 30VDC 12A 240VAC / 28VDC 12A 240VAC / 28VDC |
5~220VDC 6~380VAC |
 |
PDF Data sheet |

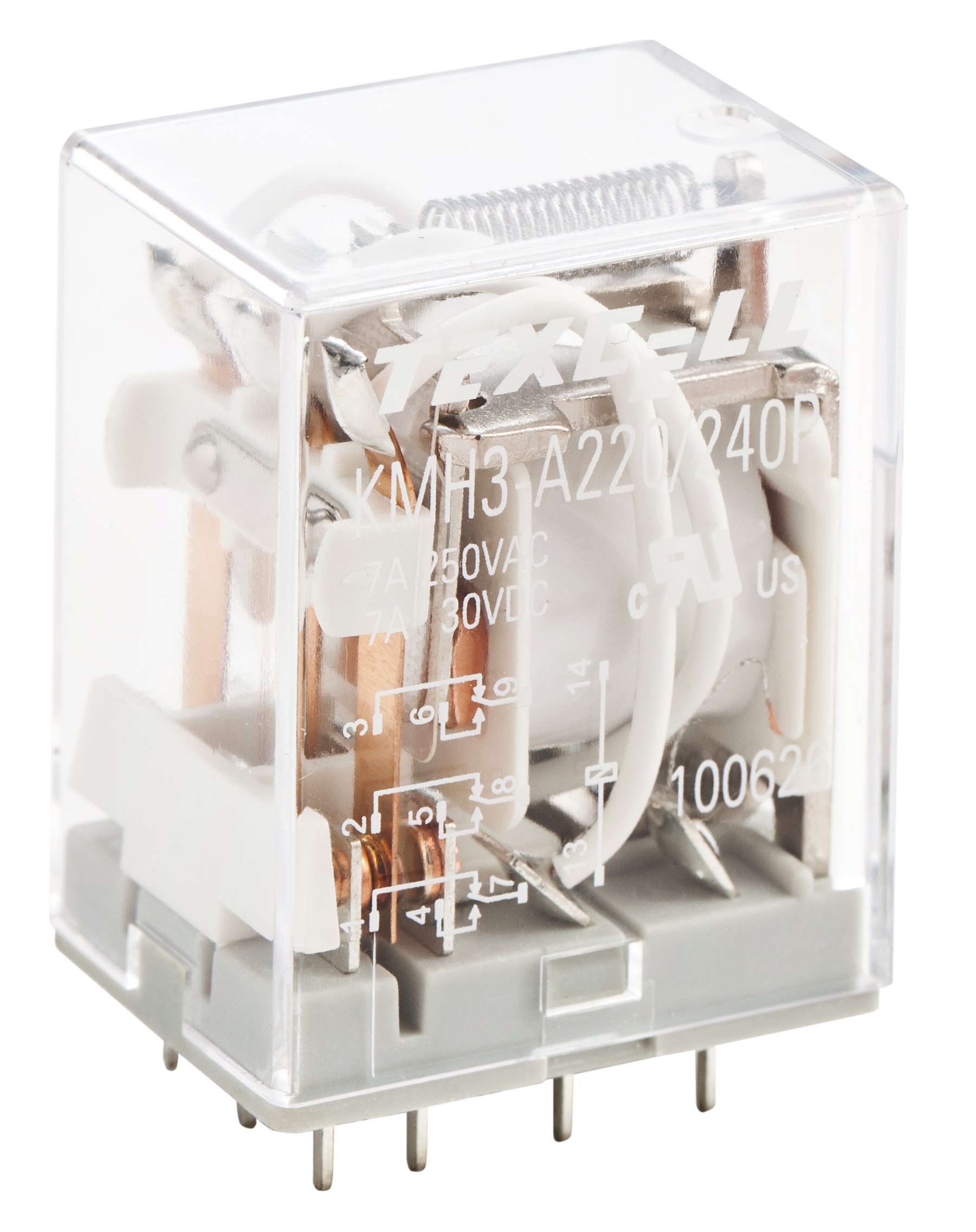

| KMH |  |
 |
28.0 x 21.5 x 36 | 2C 3C 4C |
7A 250VAC / 30VDC 7A 250VAC / 30VDC 6A 250VAC / 30VDC |
5~220VDC 6~277VAC |
 |
PDF Data sheet |

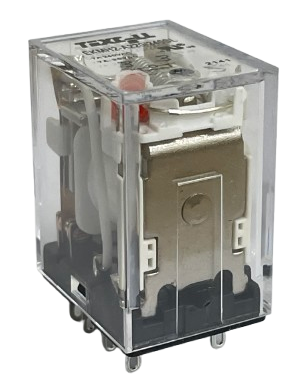

| EKMH |  |
 |
28.0 x 21.5 x 35.0 | 2C 3C 4C |
7A 240VAC / 30VDC 7A 240VAC / 30VDC 5A 240VAC / 28VDC |
5~120VDC 6~240VAC |
 |
PDF Data sheet |

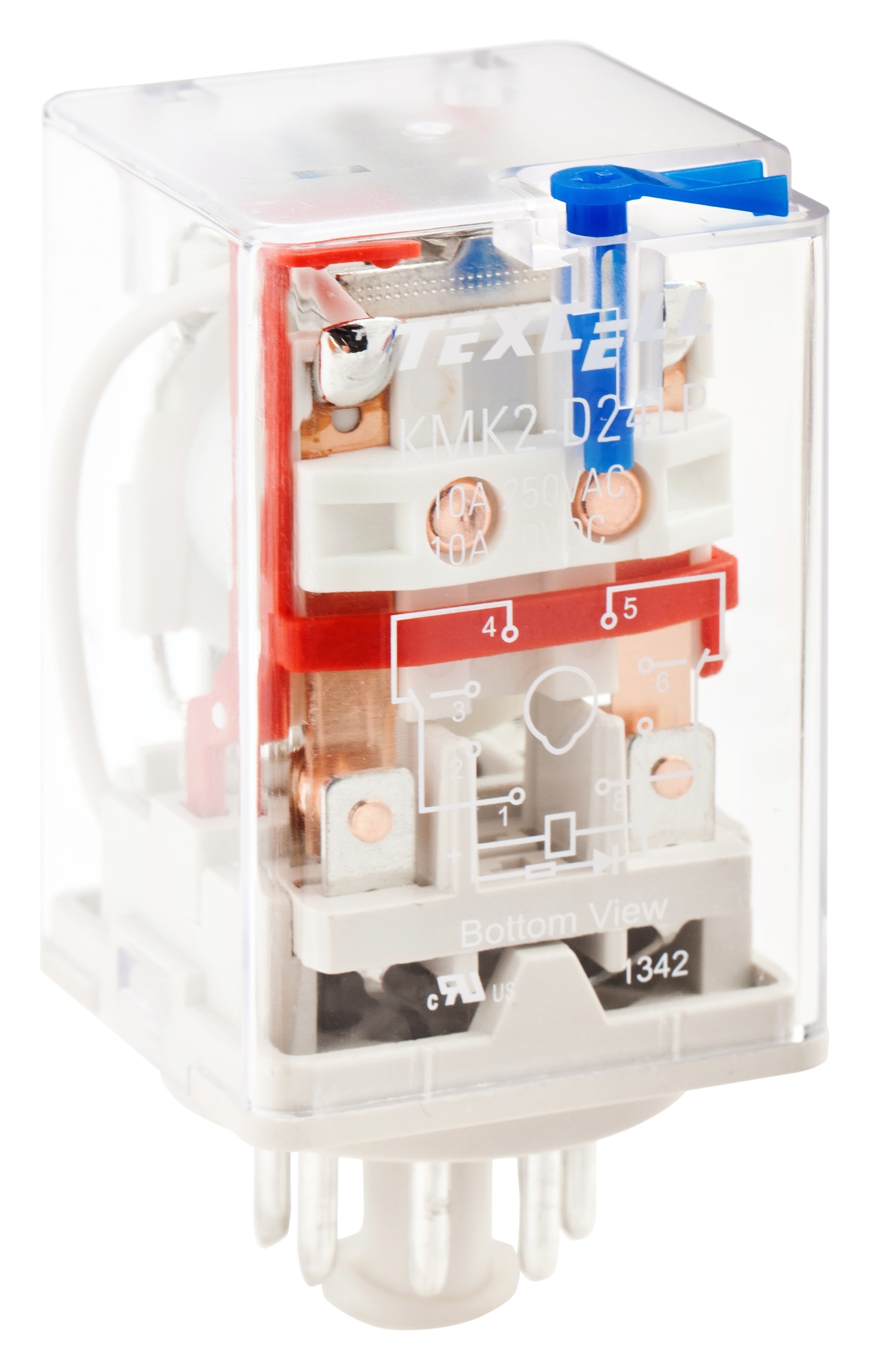

| KMK |  |
 |
35.0 x 35.5 x 55.6 | 2C 3C - NO 3C - NC |
10A 250VAC / 30VDC 10A 250VAC / 30VDC 5A 250VAC/30VDC |
6~220VDC 6~240VAC |
 |
PDF Data sheet |

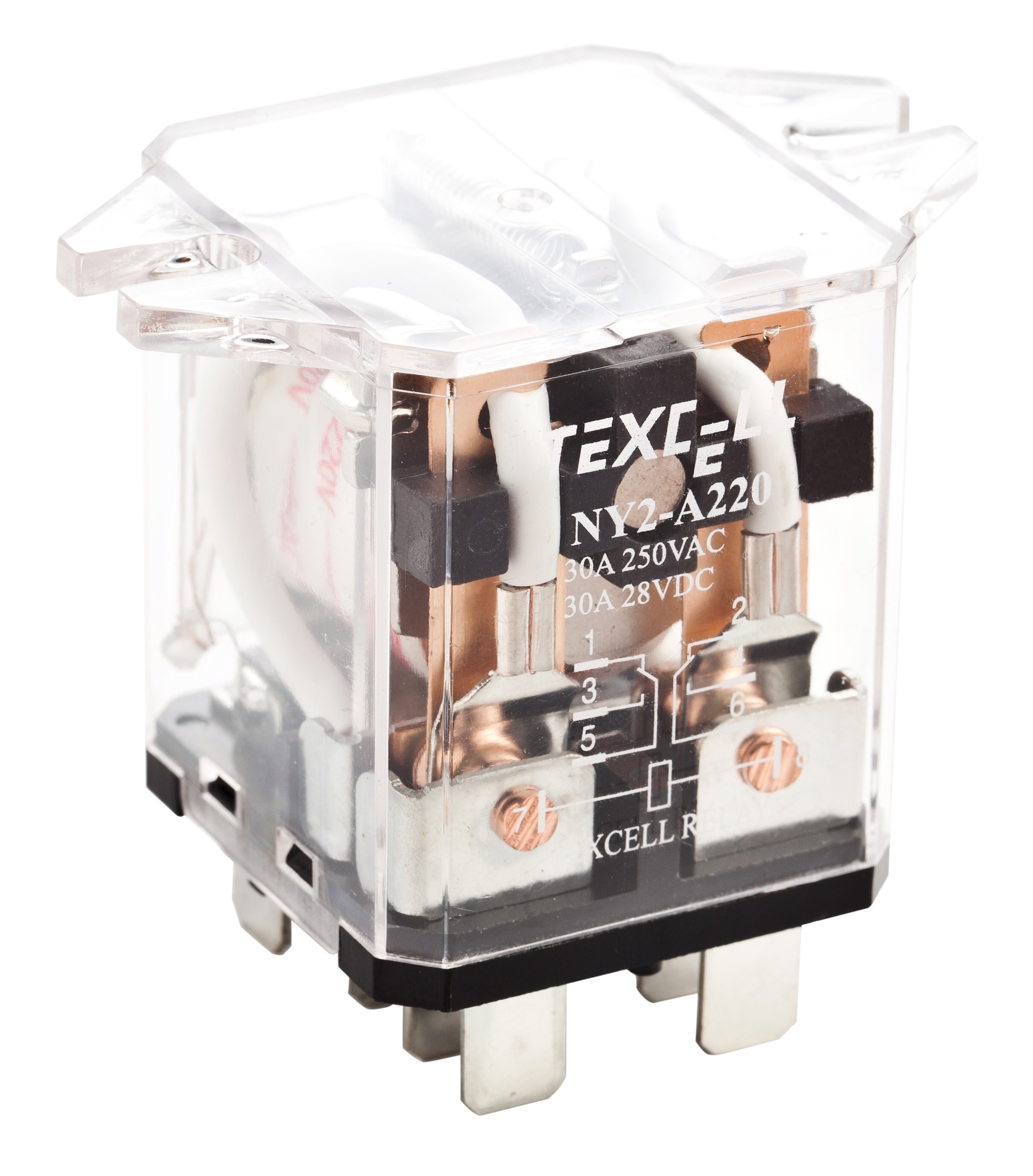

| NY |  |
 |
50.0 x 35.6 x 47.7 | 1C, 2C | 30A 250VAC / 28VDC | 6~110VDC 12~240VAC |
 |
PDF Data sheet |

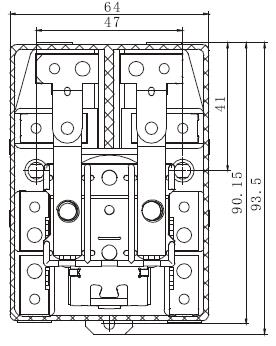

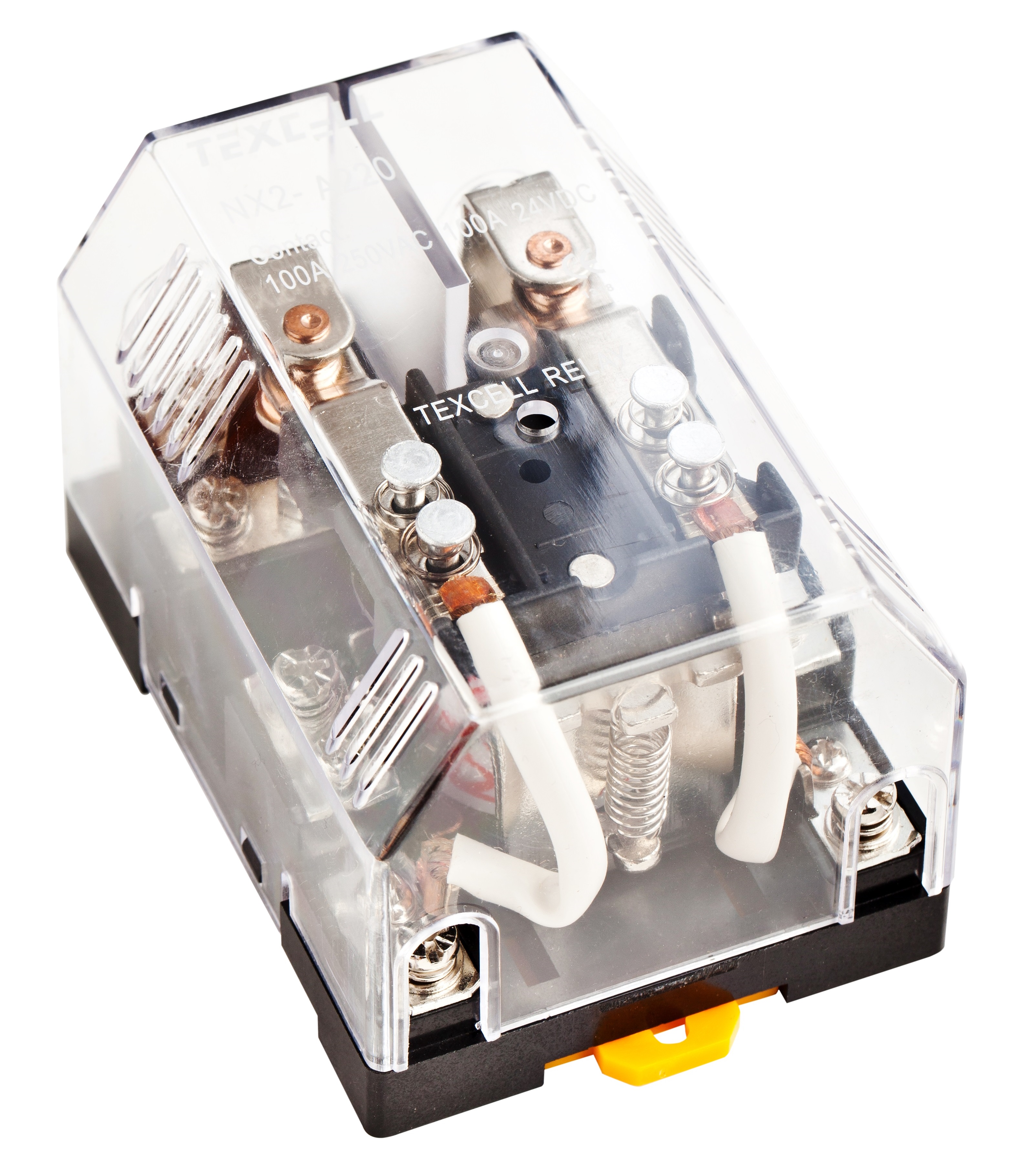

| NX |  |
 |
74.0 x 64.0 x 56.8 74.0 x 64.0 x 54.5 92.7 x 64.0 x 54.5 |
1C 2A 2C |
100A 250VAC 100A 28VDC |
6~220VDC 6~380VAC |
 |
PDF Data sheet |
| XJ |  |
 |
50.5 x 34.0 x 36.5 50.5 x 34.0 x 40.5 50.5 x 34.0 x 50.0 50.5 x 34.0 x 55.0 |
1A 2A 2A-G |
30A 277VAC / 30VDC 25A 277VAC / 30VDC 40A 250VAC / 30VDC |
6~220VDC 6~400VAC |
 |
PDF Data sheet |
