| Model | Appearance | Layout (Bottom View) |
Dimension(mm) (L x W x H) |
Control Voltage |
Max. Input Current | Load Voltage Range | Safety Approval | Data Sheet |
|---|---|---|---|---|---|---|---|---|

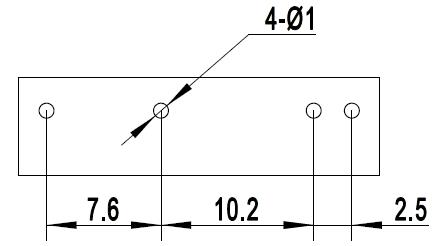

| KSA |  |
 |
24.0 x 6.5 x 21.2 | 5, 12, 24VDC | 20mA | 24~280VAC |  |
 PDF Data sheet |

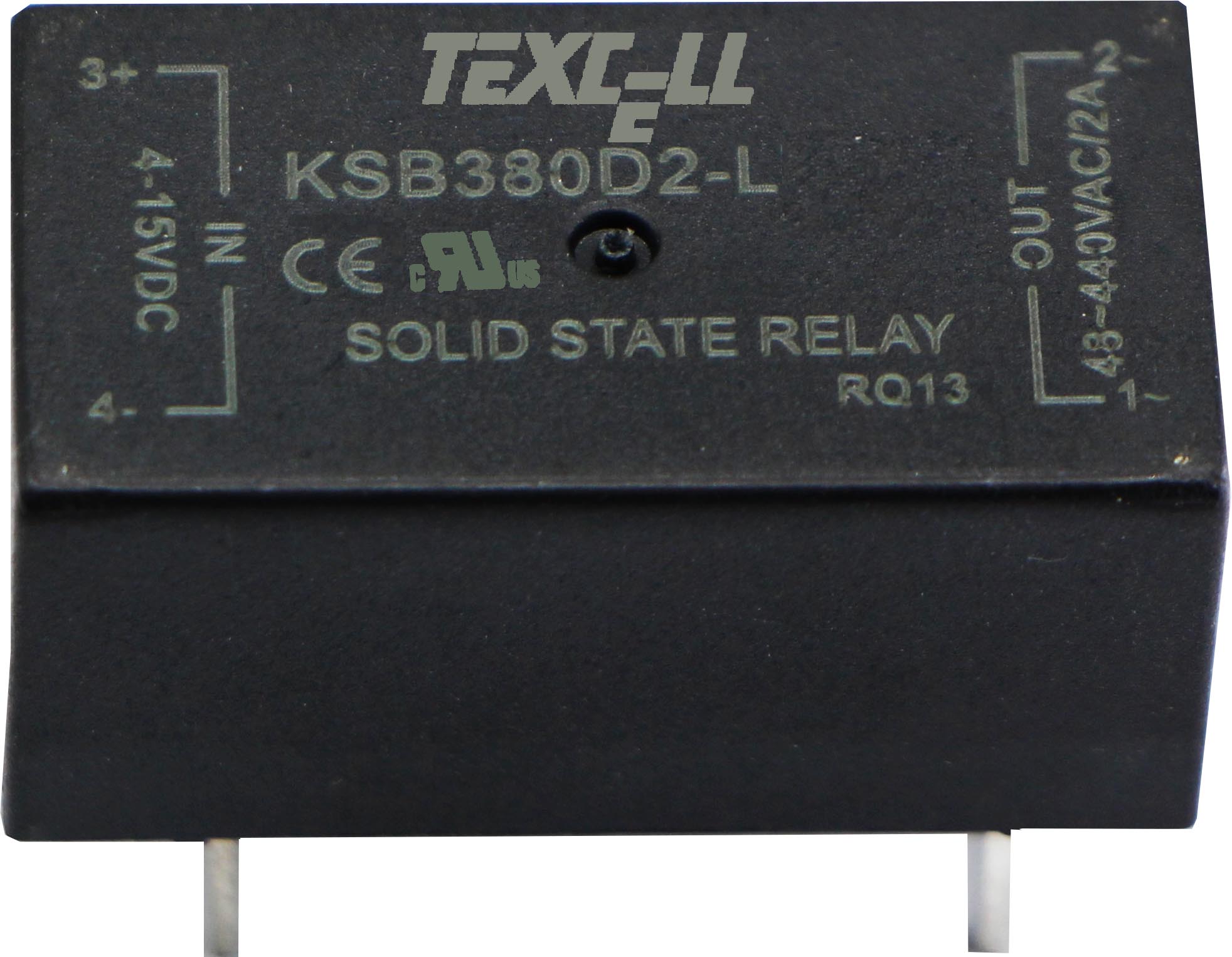

| KSB |  |
 |
33 x 16.5 x 15.6 | L: 4~15VDC H: 15~32VDC |
L: 32mA@15VDC H: 18mA@32VDC |
240VAC: 24-280VAC 380VAC: 24-440VAC |
 |
PDF Data sheet |

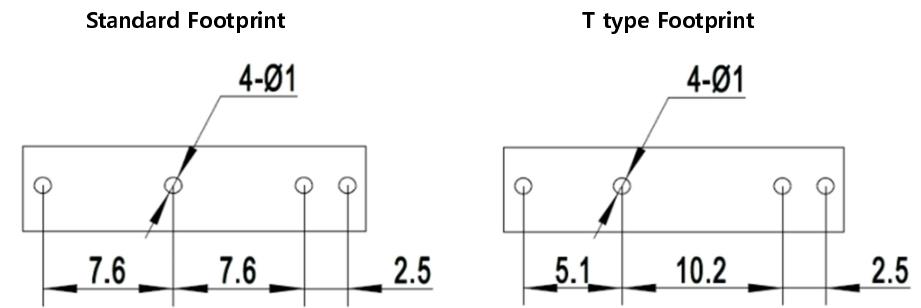

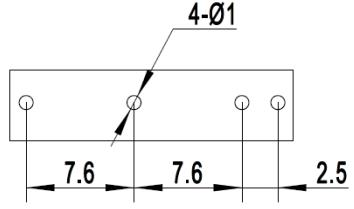

| KSC |  |
 |
20 x 5 x 17 | I 5, 12, 24VDC |
10~35mA 25mA |
24~280VAC |  |
PDF Data sheet |

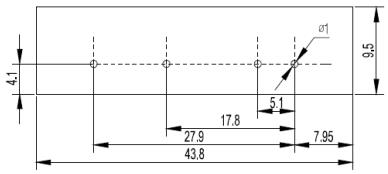

| KSD |  |
 |
43.8 x 9.5 x 26.5 | L: 4~15VDC H: 15~32VDC W: 4~32VDC |
L: 25mA H: 40mA W: 20mA |
240VAC: 48~280VAC 380VAC: 48-440VAC 48VD: 48~530VDC |
 |
PDF Data sheet |

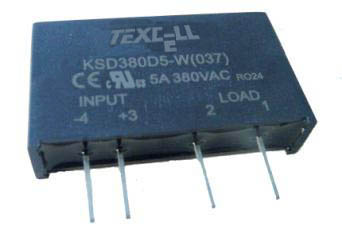

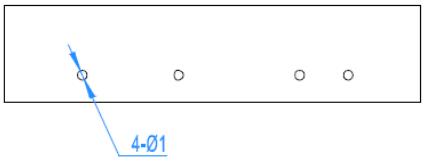

| KSD(037) | _1746423736_971.jpg) |
_1746423736_199.jpg) |
44.5 x 10.5 x 26.0 | L: 4~15VDC H: 15~32VDC W: 4~32VDC |
25mA | 240VAC: 24~280VAC 380VAC: 24~440VAC 480VAC: 24~530VAC |
 |
PDF Data sheet |

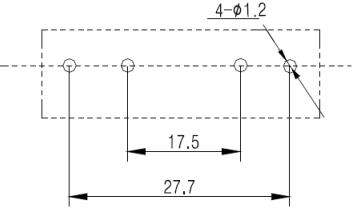

| KSFA |  |
 |
33.0 x 10.8 x 25.6 | 5, 12, 24VDC | 15mA | 240VAC: 24-280VAC 380VAC: 24-440VAC |
 |
PDF Data sheet |

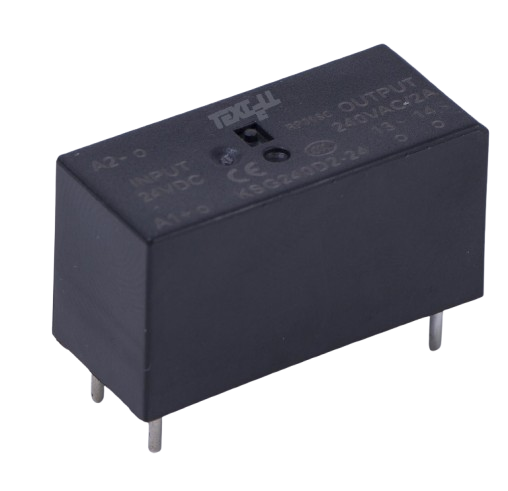

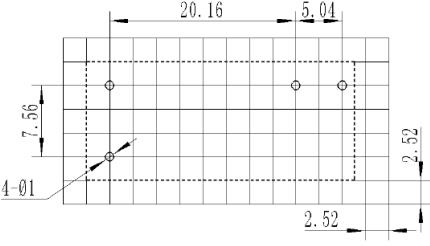

| KSG |  |
 |
29.0 x 12.5 x 15.7 | 5, 12, 24VDC | 20mA | 240VAC: 24-280VAC 380VAC: 24-440VAC |
 |
PDF Data sheet |

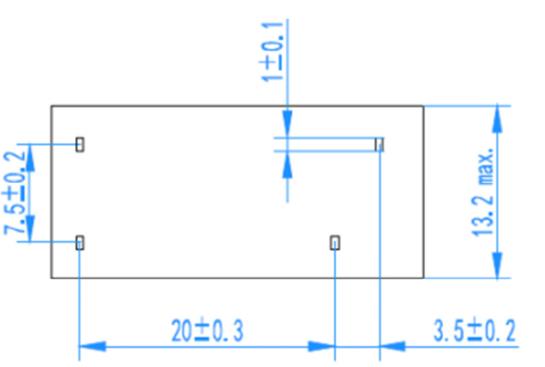

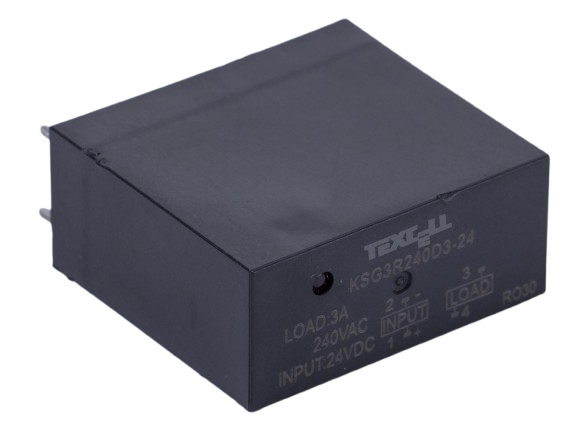

| KSG3R |  |
 |
29.2 x 13.2 x 27.5 | 5, 12, 24VDC | 20mA | 240VAC: 24-280VAC 380VAC: 24-440VAC |
 |
PDF Data sheet |

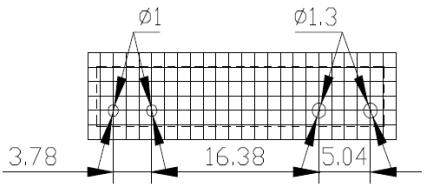

| KSMA |  |
 |
28.2 x 5.2 x 15 | 5, 12, 24, 48VDC 60VDC |
16mA 14mA |
48~280VAC |  |
PDF Data sheet |

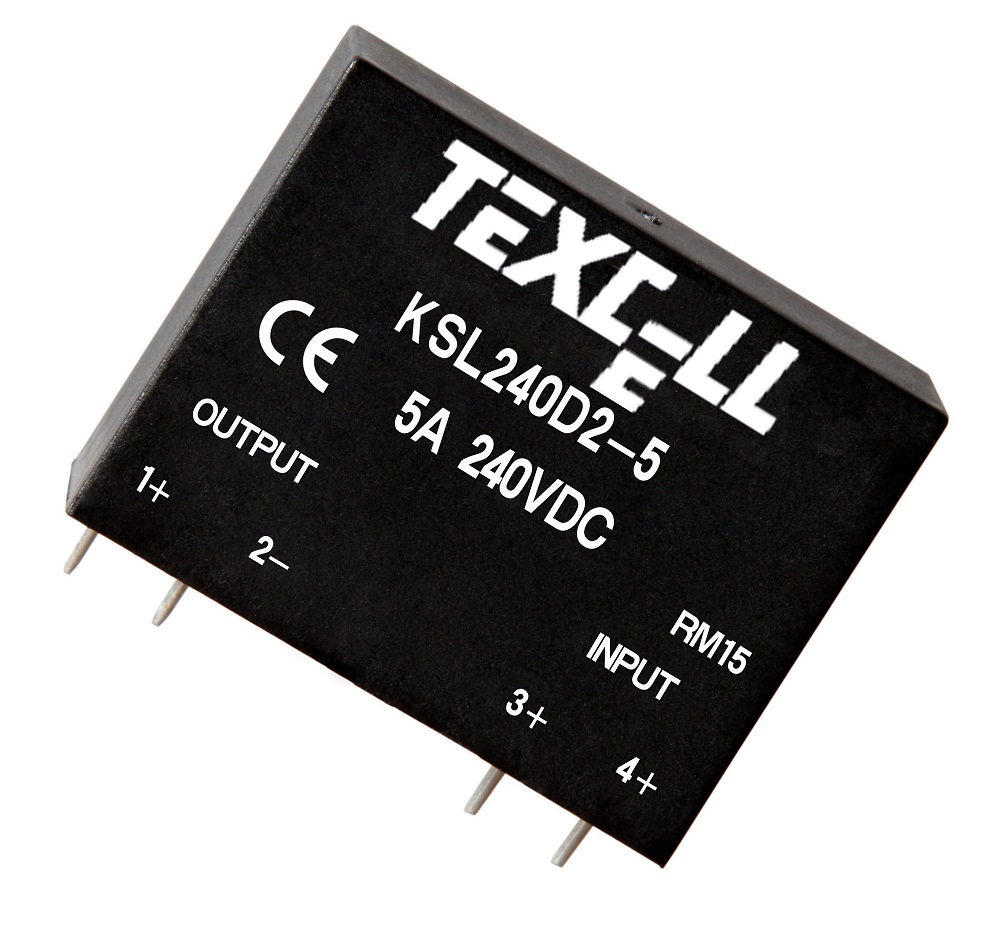

| KSL |  |
 |
44.5 x 10.5 x 26.0 | L: 3~10VDC H: 10~28VDC |
15mA | 60VDC: 0~60VDC 100VDC: 0~100VDC 200VDC: 0~200VDC 400VDC: 0~400VDC |
 |
PDF Data sheet |

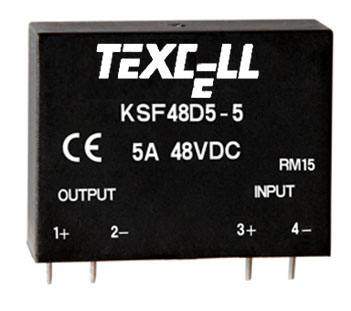

| KSF |  |
 |
33.0 x 10.8 x 25.6 | 5, 12, 24VDC W |
15mA | 48VD: 0~60VDC 100VDC: 0~100VDC |
 |
PDF Data sheet |

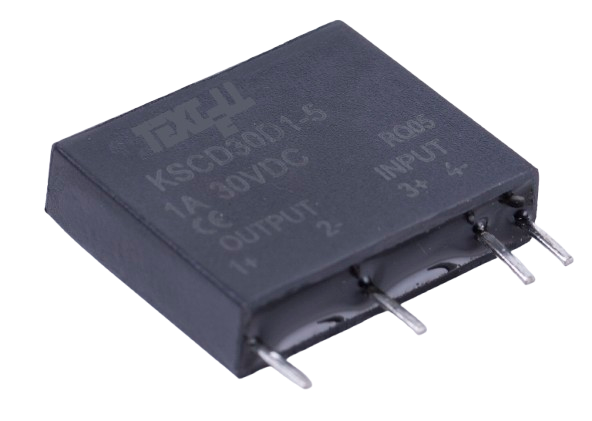

| KSCD |  |
 |
20 x 5 x 17 | 5, 12, 24VDC | 25mA | 30VDC: 3~30VDC 60VDC: 3~60VDC |
 |
PDF Data sheet |

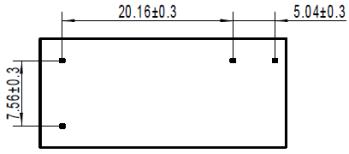

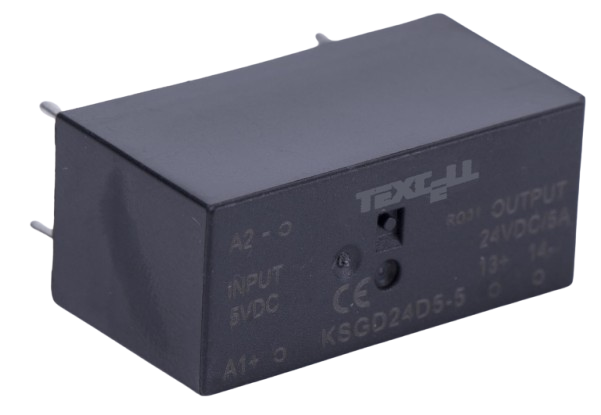

| KSGD |  |
 |
29.0 x 12.5 x 15.7 | 5, 12, 24VDC | 15mA | 24VDC: 0~28.8VDC 48VDC: 0~57.6VDC |
 |
PDF Data sheet |
| KG3RD |  |
 |
29.2 x 13.2 x 27.5 | 5, 12, 24VDC | 20mA | 50VDC: 3~50VDC 100VDC: 3~100VDC |
 |
PDF Data sheet |

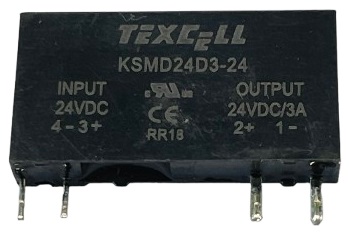

| KSMD |  |
 |
28.2 x 5.2 x 15.0 | 5, 12, 24, 48, 60VDC |
5mA, 10mA, 15mA |
24VDC: 3~28VDC 48VDC: 3~58VDC |
 |
PDF Data sheet |

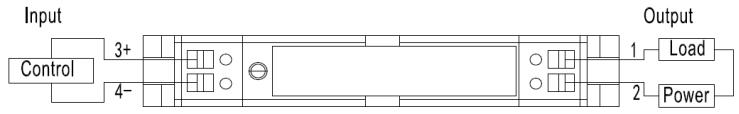

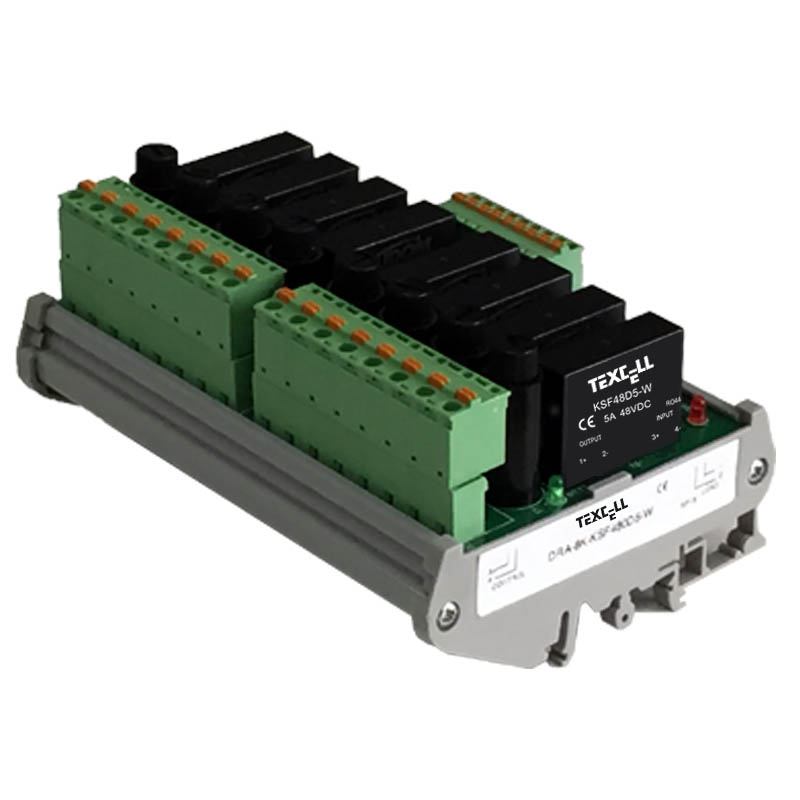

| DRA module |  |
 |
 |
PDF Data sheet |
||||

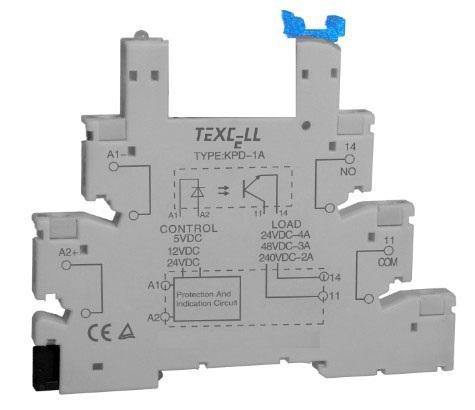

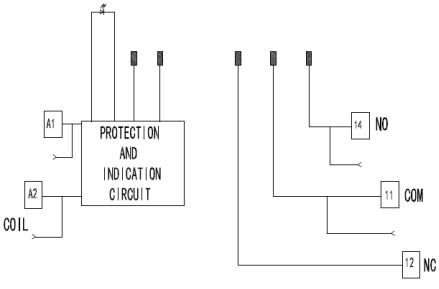

| KPD-1A socket |  |
 |
 |
PDF Data sheet |
||||

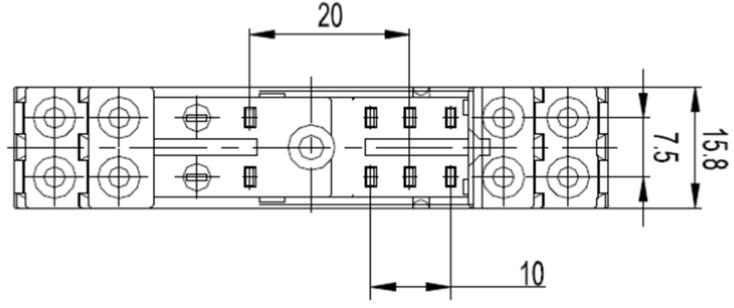

| KPD-3A socket |  |
 |
 |
PDF Data sheet |
||||

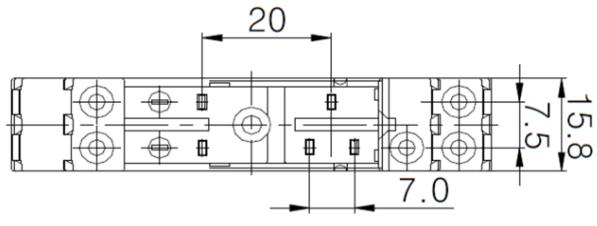

| KPD-4A socket |  |
 |
 |
PDF Data sheet |
