| Model | Appearance | Layout (Bottom View) |
Dimension(mm) (L x W x H) |
Contact Arrangement |
Contact Ratings | Coil Voltage | Safety Approval | Data Sheet |
|---|---|---|---|---|---|---|---|---|

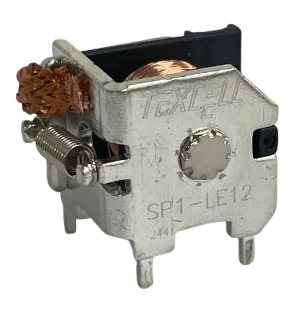

| SP |  |
 |
23.5 x 19.2 x 18.5 | 1A, 1C | NO: 40A 14VDC NC: 30A 14VDC |
3~24VDC |  |
 PDF Data sheet |
| NKBA |  |
 |
19.0 x 15.2 x 15.0 | 1A, 1C | NO: 15A 13.5VDC NC: 5A 13.5VDC |
9~24VDC |  |
PDF Data sheet |

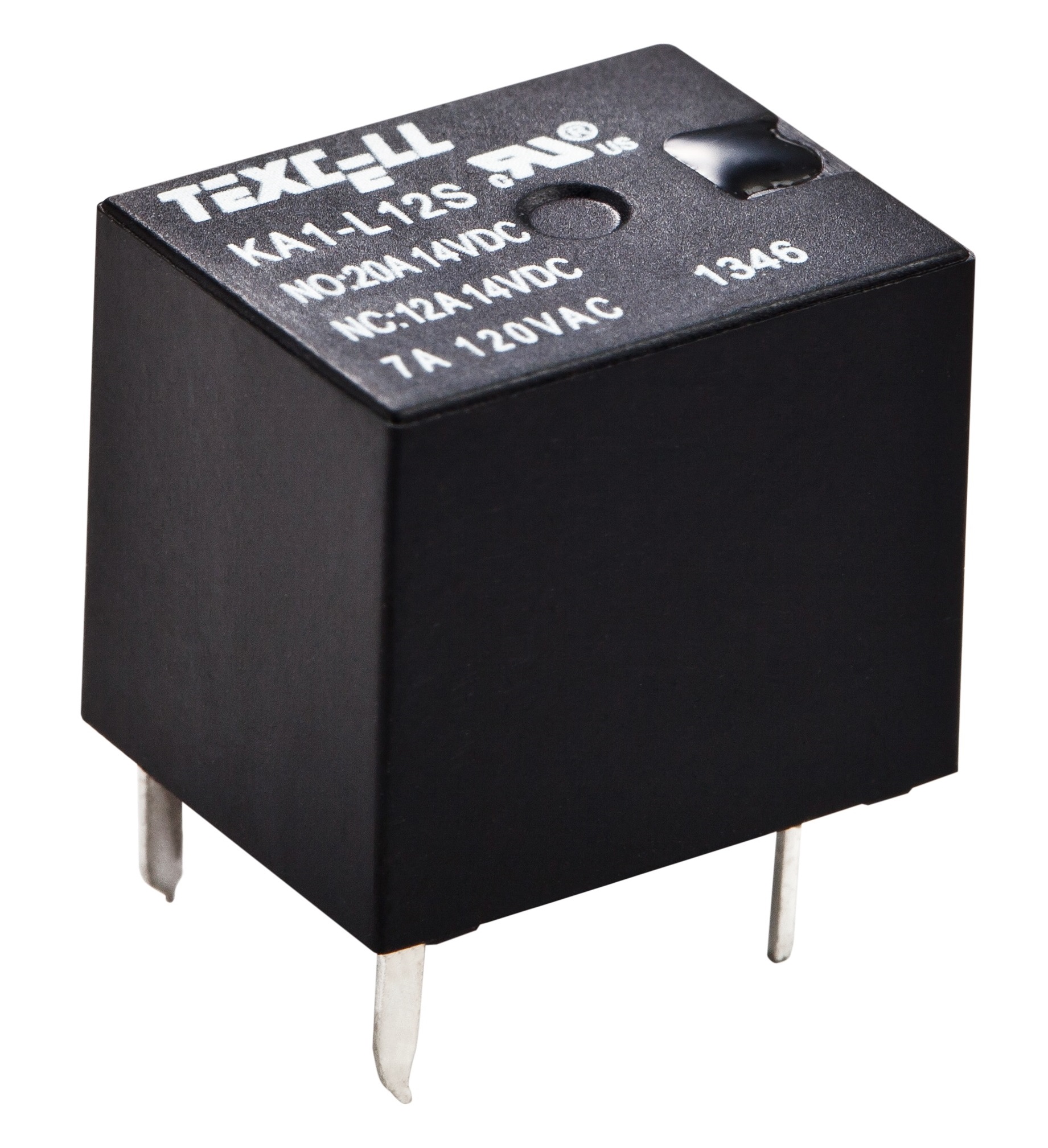

| KA |  |
 |
15.7 x 12.3 x 14.0 | 1A, 1C | NO: 20A 14VDC NC: 12A 14VDC |
6~24VDC |  |
PDF Data sheet |

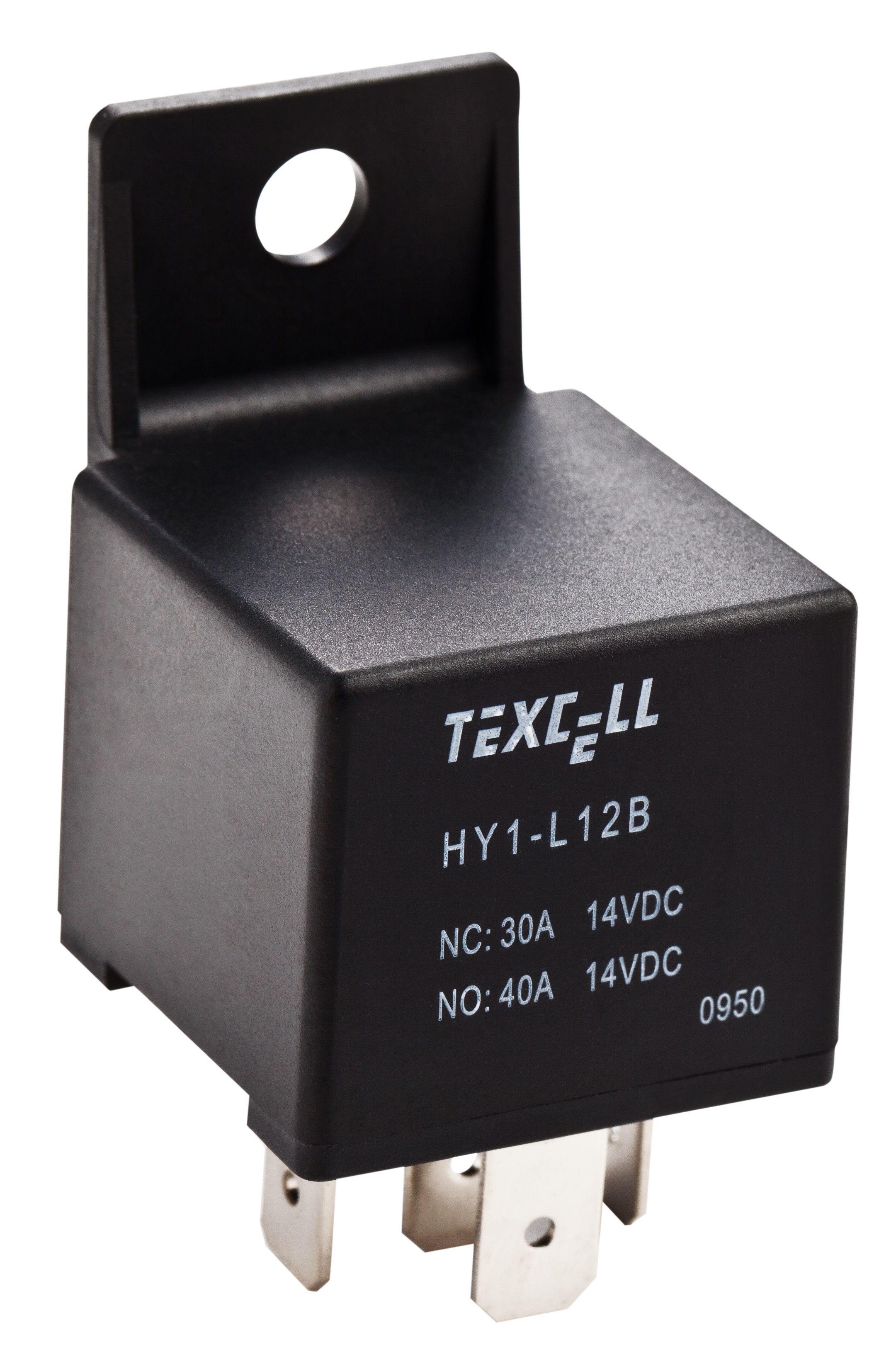

| HY |  |
 |
28 x 28 x 25 | 1A, 1C | NO: 40A 14VDC NC: 30A 14VDC |
6~24VDC |  |
PDF Data sheet |

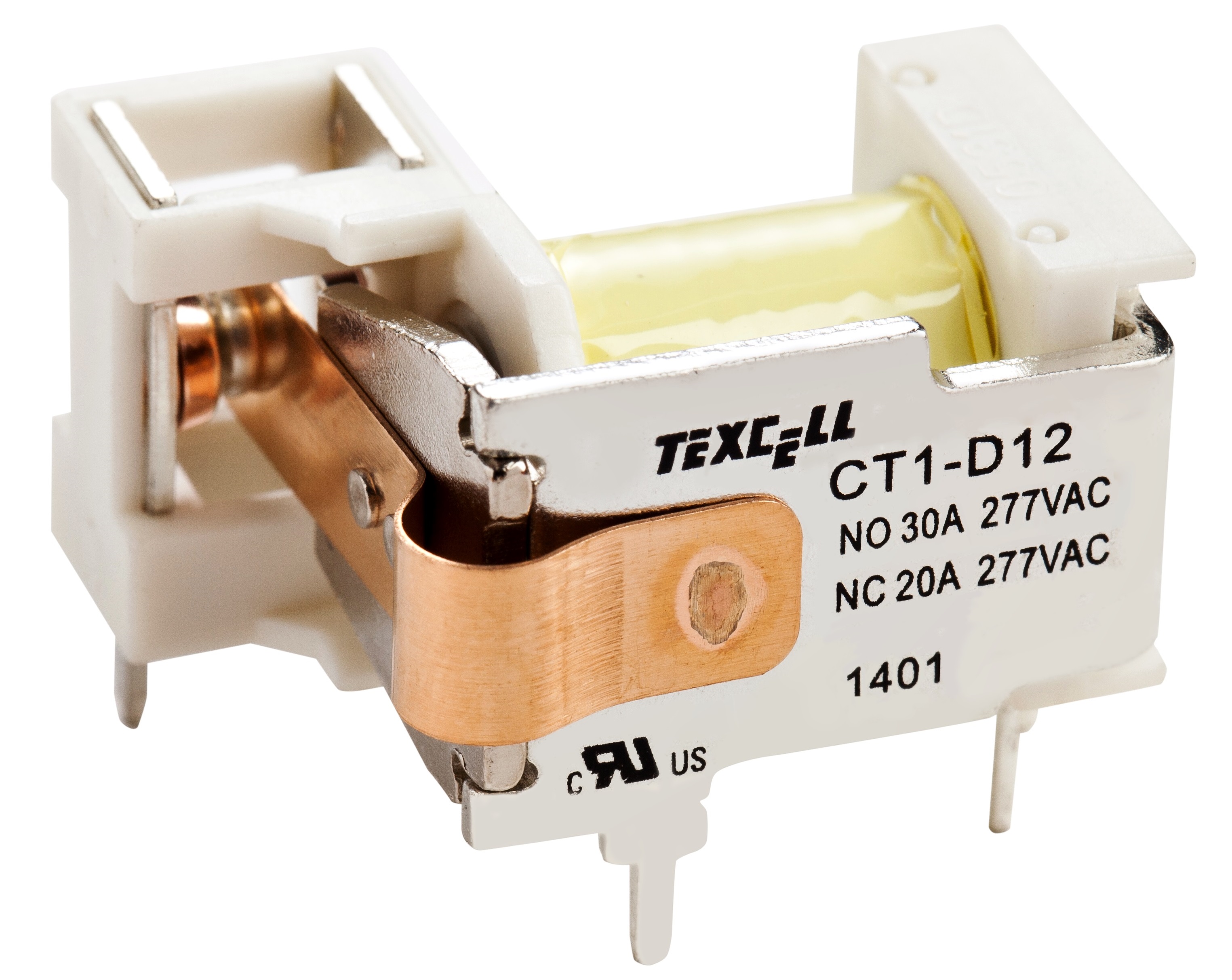

| CT |  |
_1746073605_859.jpg) |
28.3 x 23.3 x 16.3 | 1A 1C - NO 1C - NC |
30A 240VAC / 20A 28VDC 20A 240VAC / 28VDC 10A 240VAC /28VDC |
5~110VDC |  |
PDF Data sheet |
